State ProLine GS6-50-BCT 50 Gallon Natural Gas Water Heater – 40,000 BTU
State ProLine GS6-50-BCT 50 Gallon Natural Gas Water Heater – 40,000 BTU
State ProLine GS6-50-BCT 50 Gallon Natural Gas Water Heater – 40,000 BTU
State ProLine GS6-50-BCT 50 Gallon Natural Gas Water Heater – 40,000 BTU
Manufacturer #: 100191214
APEX #: SGS650BCT
Brand: State Water Heaters
Series: ProLine®
Model: GS6-50-BCT 400
Manufacturer Part Number: 100191214
Fuel Type: Natural Gas
Capacity: 50 Gallons
BTU Input: 40,000 BTU
Vent Type: Atmospheric Vent
Installation: Indoor Residential
First Hour Rating: 84 Gallons
Uniform Energy Factor (UEF): 0.62
Warranty: 6-Year Limited Tank & Parts Warranty
Product Description

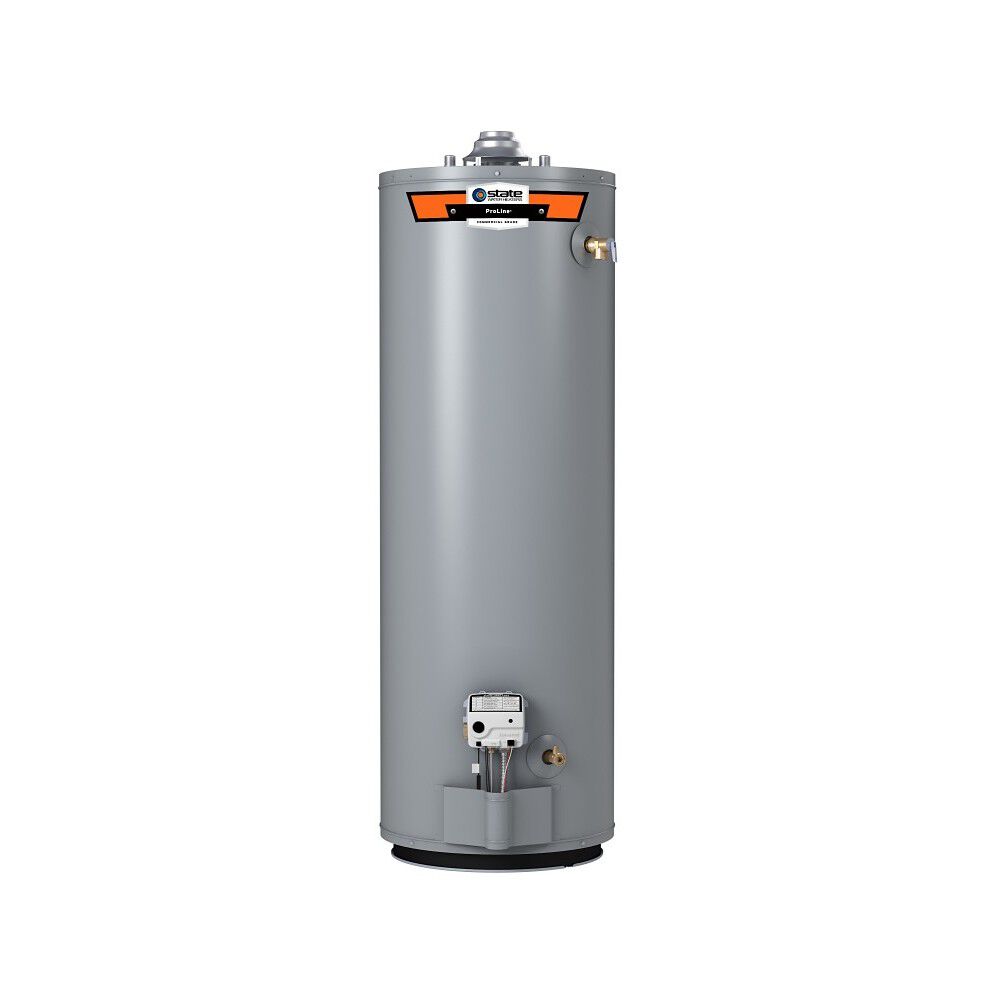

The State ProLine GS6-50-BCT 50 Gallon Natural Gas Water Heater is a tall, atmospheric-vent residential water heater designed for reliable hot water and efficient everyday performance. With a 40,000 BTU natural gas burner and an 84-gallon First Hour Rating, this 50-gallon water heater provides strong hot-water delivery for residential applications.
The GS6-50-BCT features State's Green Choice® Low NOx burner, designed to reduce NOx emissions while maintaining dependable heating performance. A push-button piezo igniter simplifies pilot ignition, while the intelligent electronic gas control provides precise temperature control and an LED status indicator.
For long-term tank protection, State equips this ProLine water heater with its Blue Diamond® glass tank lining and CoreGard™ stainless steel anode rod to help protect against corrosion. The DynaClean™ automatic cleaning system helps reduce sediment buildup and maintain water heater performance over time.
Factory-installed heat trap nipples help reduce heat loss, while a commercial-grade brass drain valve provides durable and convenient tank drainage.
With a 50-gallon nominal capacity, 48-gallon rated storage volume and 43-gallon-per-hour recovery rate, the State GS6-50-BCT is a strong option for replacing or installing a standard residential 50-gallon natural gas water heater.
Key Features
-
50-gallon nominal natural gas water heater
-
48-gallon rated storage capacity
-
40,000 BTU natural gas burner
-
84-gallon First Hour Rating
-
43-gallon-per-hour recovery rate
-
0.62 Uniform Energy Factor (UEF)
-
Atmospheric vent design
-
Low NOx Green Choice® gas burner
-
Push-button piezo pilot ignition
-
Intelligent electronic gas control
-
LED status indicator
-
Blue Diamond® glass-lined tank
-
CoreGard™ stainless steel anode rod
-
DynaClean™ automatic sediment-cleaning system
-
Factory-installed heat trap nipples
-
Commercial-grade brass drain valve
-
Factory-installed T&P relief valve
-
3/4-inch top water connections
-
Indoor residential installation
-
6-year limited tank warranty
-
6-year limited parts warranty
Specifications
| Specification | Details |
|---|---|
| Brand | State Water Heaters |
| Series | ProLine |
| Model | GS6-50-BCT 400 |
| Manufacturer Part # | 100191214 |
| Product Type | Tank Water Heater |
| Fuel Type | Natural Gas |
| Vent Type | Atmospheric Vent |
| Application | Residential |
| Installation | Indoor |
| Nominal Capacity | 50 Gallons |
| Rated Storage Volume | 48 Gallons |
| BTU Input | 40,000 BTU |
| First Hour Rating | 84 Gallons |
| Recovery Rate | 43 Gallons/Hour |
| UEF | 0.62 |
| Ignition | Pilot with Piezo Igniter |
| Water Connection | 3/4 in. |
| Water Connection Location | Top |
| Flue Diameter | 4 in. |
| Height | 57 in. |
| Diameter | 22 in. |
| Height to T&P | 50.5 in. |
| Height to Gas Valve | 12.5 in. |
| Shipping Weight | 161 lb. |
| Tank Warranty | 6 Years |
| Parts Warranty | 6 Years |
Built for Reliable Residential Hot Water
The combination of a 50-gallon tank and 40,000 BTU burner gives the State GS6-50-BCT an 84-gallon First Hour Rating, making it suitable for residential applications requiring substantial hot-water availability from a traditional tank-style gas water heater.
Its atmospheric vent configuration is designed for conventional venting installations. Before replacing an existing water heater, verify the fuel type, venting requirements, dimensions, water connections and local installation requirements.
Why Buy State Water Heaters from Apex Supply?
Apex Supply Company supplies professional-grade plumbing products to plumbers, contractors and homeowners. Shop the State GS6-50-BCT 50 Gallon Natural Gas Water Heater online and check availability for pickup or delivery.
For replacement water heaters, confirm model specifications, dimensions, fuel type and venting requirements before ordering.
| Application | Residential |
|---|---|
| BtuH Water Heaters | 40,000 BTU |
| Fuel Type Water Heaters | Natural Gas |
| Gas Connection | 1/2 in. |
| Height to Top of Heater | 57 in. |
| Shipping Weight (lbs.) | 161 |
| Tank Capacity Plumbing | 50 Gallon |
