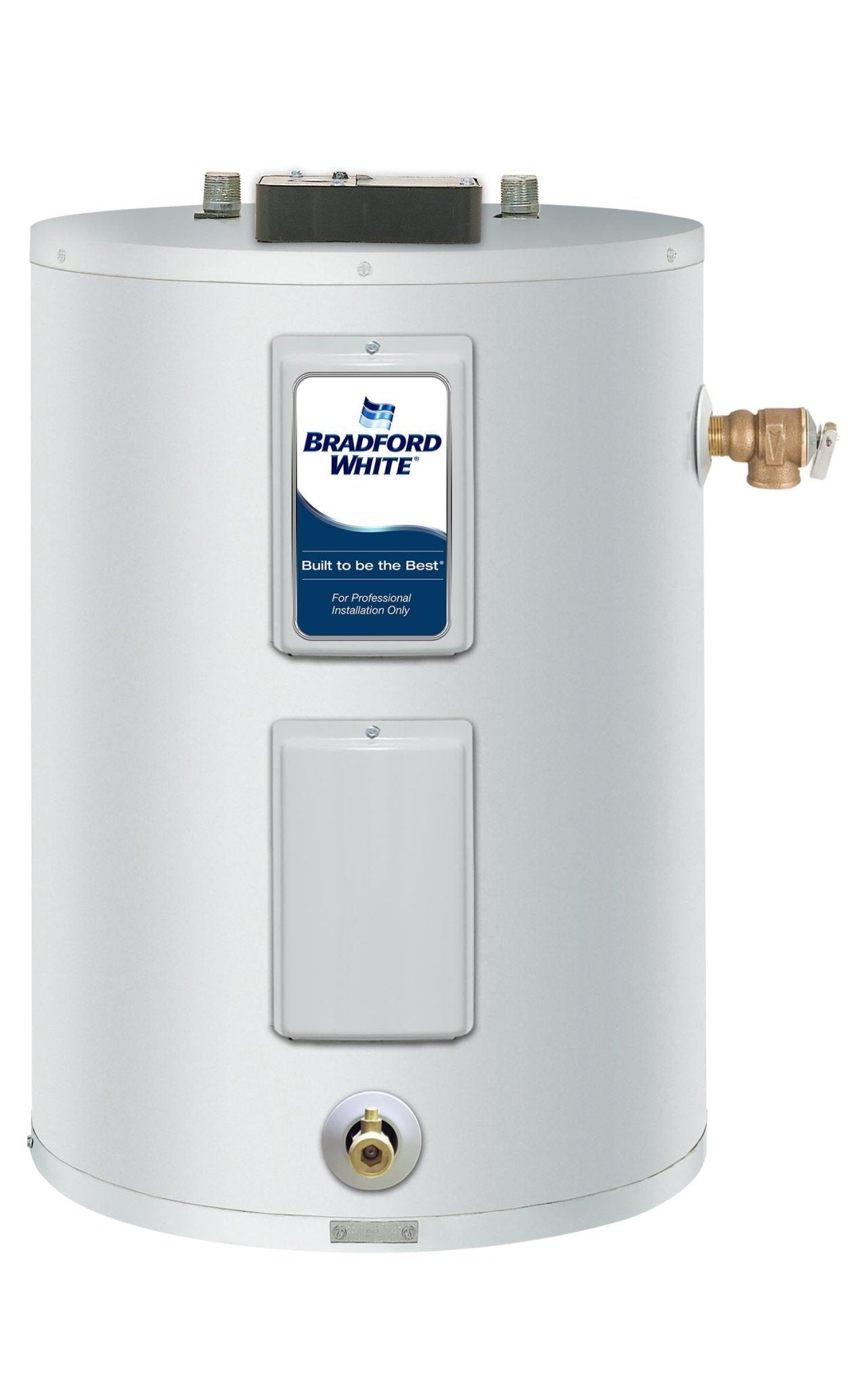

Bradford White 19gal. Commercial LD Lowboy Electric Heater
Bradford White 19gal. Commercial LD Lowboy Electric Heater
Bradford White 19gal. Commercial LD Lowboy Electric Heater
Bradford White 19gal. Commercial LD Lowboy Electric Heater
Features
- Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Direct heat transfer with immersed element: Transfers heat directly and efficiently to the water screw-in style
- Factory installed Hydrojet® sediment reduction system
- Vitraglas® lining
- Vitraglas® is fused to the steel surface by firing at a temperature of over 1600 deg F
- Insulation system: 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
- Results in less energy consumption, improved operation efficiencies and jacket rigidity
- Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Factory installed heat traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium rod: Provides added protection against corrosion for long trouble free service
- Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
- Field convertible: Units are shipped from factory standard 3 ph, non-simultaneous and can be converted to 1 ph and/or simultaneous operation in the field
- Lowboy models are ideal for installations where space is at a premium and are perfect for tight installations such as a closet or under a counter
- Copper screw type immersion element
- Hydrojet® total performance systemNon-simultaneous
- 19-gallon capacity
- Commercial-grade materials
- Lowboy design for compact spaces
Why shop at Apex Supply?
Family-owned Apex Supply serves plumbers, contractors, and homeowners with quality plumbing supplies and knowledgeable guidance. Shop online or visit our Texas locations for help with your next project.
Explore our wide selection and convenient pickup and delivery options. Find an Apex Supply location or learn more about Apex.
| Application | Commercial |
|---|---|
| Commercial Residential | Commercial |
| First Hour Rating | 61 gal |
| Height to Cold Side Connection | 25.81 in. |
| Height to Hot Side Connection | 25.81 in. |
| Jacket Dia | 18 in. |
| Max Pressure | 150 psi |
| Overall Height Water Heaters | 24.75 in. |
| Phase Water Heaters | 3 Phase |
| Recovery 90 F Rise | 21 GPH |
| Shipping Height (in.) | 28.63 in. |
| Shipping Length (in.) | 19.88 in. |
| Shipping Weight (lbs.) | 68 lbs. |
| Shipping Width (in.) | 18.38 in. |
| Status | Active |
| Tank Capacity Plumbing | 19 gal |
| Total Watts | 4.5 KW |
| Unit Height (in.) | 24.75 in. |
| UPC | 671632805228 |
| Voltage Water Heaters | 240/208 V |
| Warranty | https://warrantycenter.bradfordwhite.com/ |
| Water Connection | 0.75 in. |
