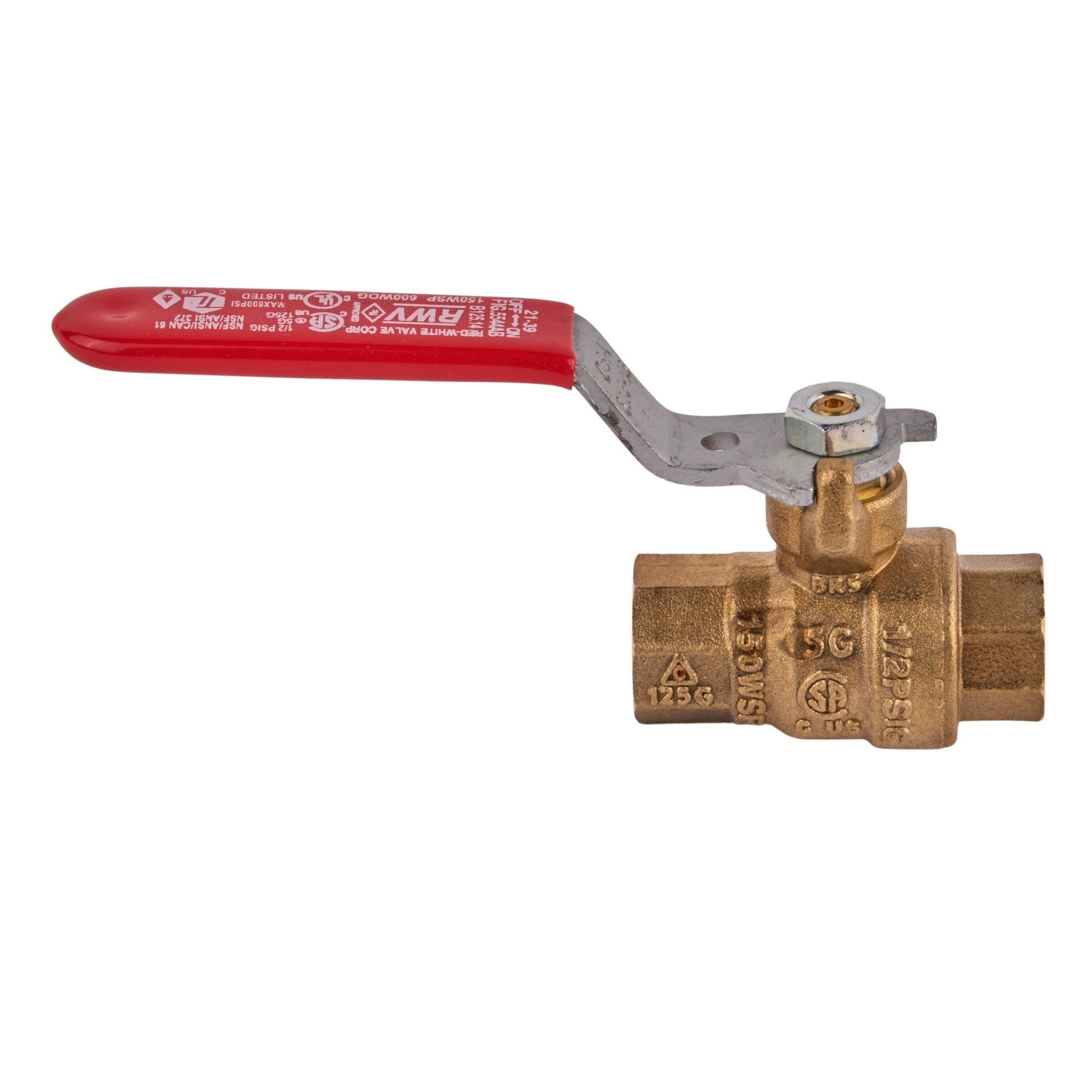

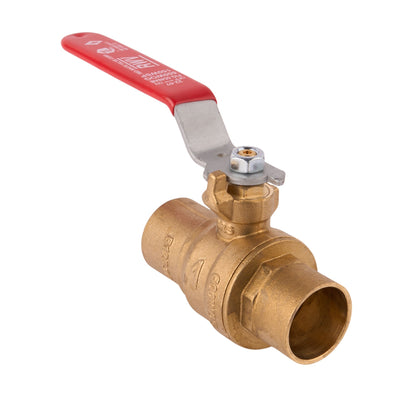

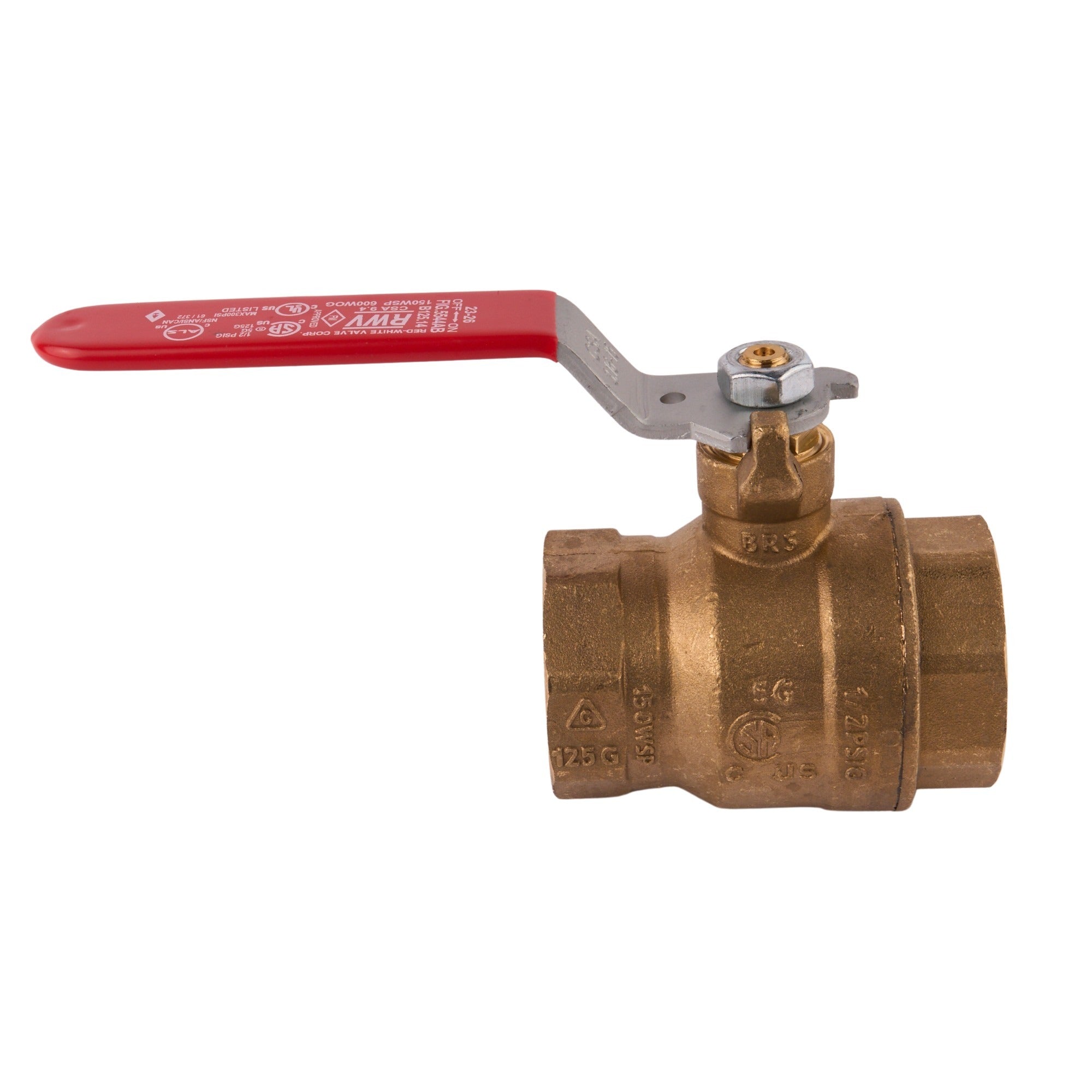

Brass Full Port Lead-Free Ball Valve
Brass Full Port Lead-Free Ball Valve
Brass Full Port Lead-Free Ball Valve
Brass Full Port Lead-Free Ball Valve
Order Multiple Sizes
Select the quantity for each size of Brass Full Port Lead-Free Ball Valve you'd like to order. Then click the "Add to cart" button to add all selected items to your cart.
- 10 sizes available
- Material: Lead-free Brass
- Pressure Rating: 600 PSI
- Certifications: NSF/ANSI 61, cUPC
- Connection Type: NPT (National Pipe Thread)
| Ball Material | Lead Free Brass / Chrome Plated |
|---|---|
| Ball Valve Product Group | Manual Ball Valve |
| Body Material | Lead Free Brass |
| Connection Type | Threaded Ends (ASME B1.20.1-NPT) |
| Features |
|
| General Connection Type | FNPT x FNPT |
| Handle Material | Steel / Geomet® Plated |
| Handle Type | Lever Handle |
| Max Pressure | 600 PSI |
| Max Steam Pressure | 150 PSI |
| Pipe Size | 1/4 in. |
| Port | Full |
| Seat Material | Virgin PTFE |
| Series | 5544AB |
| Standards | MSS-SP-110, CSA Certified ANSI Z21.15/CSA 9.1 - 1/2 PSI (¼ in. - 3 in.), CSA ΔC (¼ in. - 2 in.), CSA Certified CGA CR91.002 - 5G (5 PSI) (¼ in. - 2 in.), CSA Certified ASME B16.44 - 5G (5 PSI) (¼ in. - 3 in.), CSA Certified CSA 3.16 -125 PSI (¼ in. - 2 in.), UL Approved (600 PSI for ¼ in. - 1 in. and 300 PSI for 1¼ in. - 2 in.), UL Category VQGU (Trim and Drain Valve), UL Categories MHKZ-YQNZ-YRBX-YRPV-YSDT (Gas Shut-off Valve), FM Approved (¼ in. - 2 in.) Class Number 1140, CSA Certified ASME A112.4.14 /CSA B125.14 (1/4 in. - 2 in.), CSA Certified IAPMO / ANSI Z1157 (1/4 in. - 2 in.), AB1953, NSF/ANSI 61 & 372 Certified, Meet BAA Requirement, ASTM B927 C27450, ASTM B124 C37700, ASTM A38 |
| Stem Material | Lead Free Brass |
| Stem Type | Blow-Out Proof Stem |
| Temp Range | 15° F to 160° F |
| Tube Size | 1/4 in. |
| Unit Height (in.) | 1.50 in. |
| Unit Length (in.) | 3.15 in. |
| Unit Weight (lbs.) | 0.26 lbs. |
| Unit Width (in.) | 1.72 in. |
| Valve Structure | 2-Piece Body |
